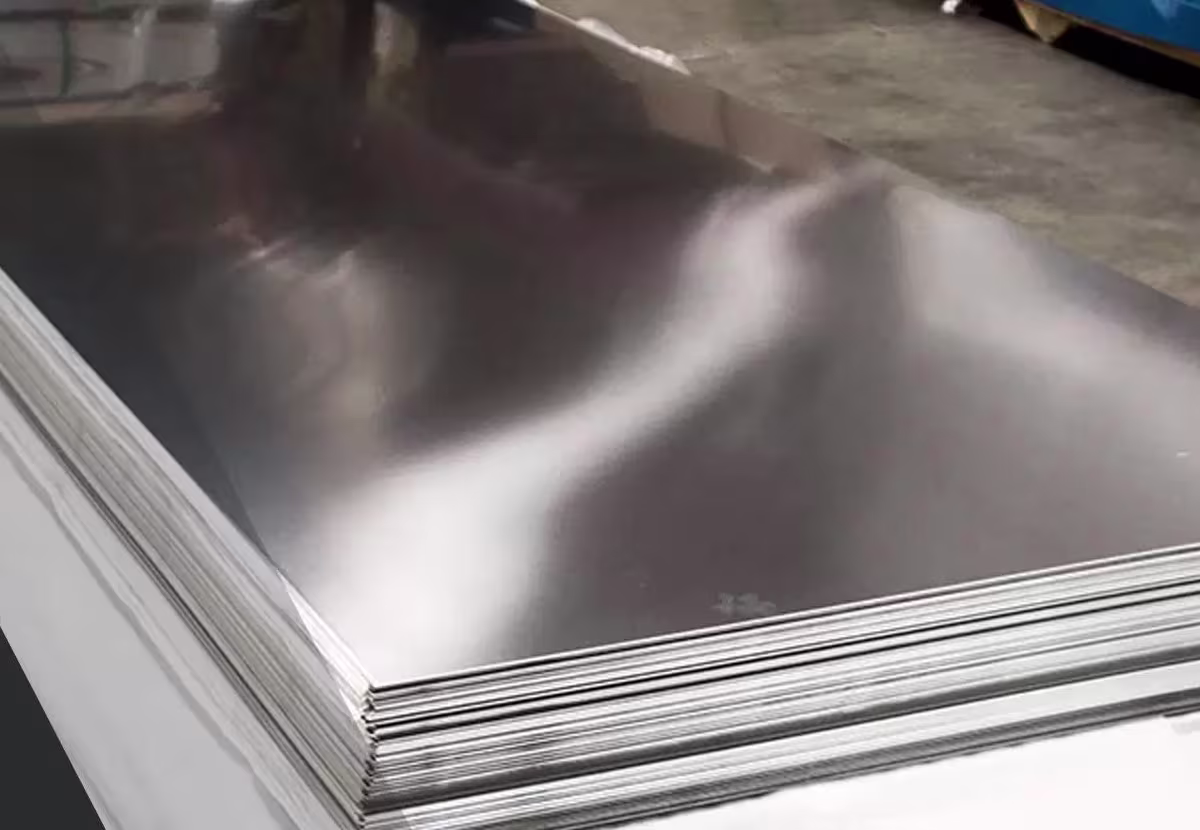

Monel 400 Plates / Sheets / Coils - Leading Monel 400 Sheet Importer in India
Nickel Alloy Plate Hub is a trusted stockist and direct importer of Monel 400 Plates, Sheets, and Coils, sourced from a reputed supplier in South Mumbai, India. Monel 400 Plates / Sheets / Coils are piping and tubing additives supplied from top-rate ‘Nickel-Copper’ Alloy. Typically known for their high resistance to corrosion and top mechanical properties, Monel 400 or UNS N04400 Plates / Sheets / Coils are erected from a solid solution alloy matrix, which is a major reason that the usage of ASTM B127 plates provides a piping and tubing system with superior mechanical strength, ductility, and impact resistance.
Monel 400 Plates / Sheets / Coils Specifications:
| Parameter | Specification |
|---|---|
| Specifications | ASTM B127 / ASME SB127 |
| Dimension Standard | ASTM, ASME, EN, DIN, JIS, GB, etc |
| Width | 1000 mm, 1250 mm, 1500 mm, 2000 mm |
| Length | 2000 mm, 2500 mm, 3000 mm, 6000 mm or coil form |
| Thickness | 1 mm to 36 mm |
| Form | Plates, Sheets, Coils, Plain Sheet, Perforated Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Surface Finishing | Hot Rolled Plate (HR), Cold Rolled Sheet (CR) |
| UNS Number | UNS N04400 |
| Werkstoff Nr. | 2.4360 |
| Origin | VDM, Nippon Yakin Japanese Origin |
Types of Monel 400 (UNS N04400) Plates/Sheets/Coils:
UNS N04400 or Monel 400 Plates / Sheets / Coils, like most piping and tubing components, are available in various types. These include:
- Monel 400 Hot Rolled Plate
- Monel 400 Cold Rolled Sheet
- Monel 400 Slit Coils
- Monel 400 Plain Plates
- Monel 400 Perforated Sheets
Physical Properties of Monel 400 Plates / Sheets / Coils or WNR 2.4360:
The physical properties of UNS N04400 or Monel 400 Plates / Sheets / Coils are given in a tabular form:
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1300 – 1350 °C |
| Thermal Conductivity | 21.6 W/m·K |
| Electrical Resistivity | 50 µΩ·cm |
| Specific Heat Capacity | 0.43 J/g·°C |
| Elastic Modulus | 140 GPa |
| Thermal Expansion | 13.1 µm/m·°C |
Price of Monel 400 Plates / Sheets / Coils:
Typically, the Monel 400 Plates / Sheets / Coils Price will fluctuate due to various factors. These include supplier, quantity, dimensions, finish, market conditions, and location. In terms of the ASTM B127 cost, there are a few other factors to be considered. They are:
- Thickness
- Finish
- Size
- Quantity
- Location
UNS N04400 / Monel 400 Hot Rolled or Cold Rolled Plate Chemical Composition:
The chemical content of Monel 400 Plates / Sheets / Coils made by Hot or Cold rolling process is given in the table below:
| Element | Composition |
|---|---|
| Nickel (Ni) | ≥ 63% (typically ~66%) |
| Copper (Cu) | 28.0 – 34.0% |
| Iron (Fe) | ≤ 2.5% |
| Manganese (Mn) | ≤ 2.0% |
| Silicon (Si) | ≤ 0.5% |
| Carbon (C) | ≤ 0.3% |
| Sulfur (S) | ≤ 0.024% |
Applications of UNS N04400 / Monel 400 Plates / Sheets / Coils
Typically, the ASTM B127 standards are considered to be equal for the Monel 400 Plates / Sheets / Coils. They are known for their high corrosion resistance & great strength. Hence, they are used in a wide range of applications. They are as follows:
- Chemical processing
- Marine industry
- Oil and Gas industry
- Aerospace industry
- Pharmaceutical industry
- Desalination Plants
- Food Processing
- Power generation
400 Monel or UNS N04400 Plates / Sheets / Coils Mechanical Characteristics:
The mechanical properties of Monel 400 Plates / Sheets / Coils that provide it strength and ‘Durability’ are given in the table below:
| Property | Value |
|---|---|
| Tensile Strength | 483 – 586 MPa (70 – 85 ksi) |
| Yield Strength (0.2% Offset) | 172 – 310 MPa (25 – 45 ksi) |
| Elongation | 35 – 50% (in 2 inches) |
| Hardness | 60 – 80 HRB (Rockwell B) |
| Reduction of Area | 60 – 70% |
| Impact Strength (Charpy V-notch) | 100 – 135 J (74 – 100 ft-lb Sheets) at 20°C (typical) |
Why Choose Exotic Plate Hub for Monel 400 Plates / Sheets / Coils?
There are several reasons why you need to choose Monel 400 Plates from our hub. They are as follows:
- Provision of customization
- 100% certified and quality tested, as products are sourced from the best supplying abilities, such as Outokumpu, Nippon Yakin, and so on.
- Competitive Pricing availability
- Efficient delivery, which will be on time and sometimes, as needed, urgent deliveries will be served.
- Fabrication and Machinability support
Equivalent Grades of Monel 400 Plates / Sheets / Coils / UNS N04400
The equivalent grades of Monel 400 Plates / Sheets / Coils based on various international standards are given in the table below. They help to identify similar alloys with comparable chemical composition and properties across different naming conventions.
| Standard | Equivalent Grade |
|---|---|
| UNS | N04400 |
| Werkstoff Nr. (W.Nr.) | 2.4360 |
| EN | NiCu30Fe |
| BS | NA 13 |
| AFNOR | NU-30M |
| JIS | NW 4400 |
| GOST | МНЖМц 28-2,5-1,5 |
| AMS | 4544 (for sheets/plates) |
CONTACT OUR HUB FOR MORE INFORMATION
If you are looking for the best Sheets/Plates/Coils Monel 400 in India in any era that offers high-premium products and 100% quality assurance at an affordable cost, then you need to bet on us, and not just that, but you can get a quote from us at Nickel Alloy Plate Hub, a top Sheets/Plates/Coils Monel 400 supplier in India today and leader of the world’s tomorrows.
FAQs
What is Monel 400, and what are its major specifications?
Monel 400 is a nickel-copper alloy that is well recognized and known for its excellent corrosion resistance, high strength, as well as activities against harmful chemicals. It is generally and in other words more preferred for the seawater environment, such as acetic & alkaline environments.
What are the required applications of Monel 400 plates, sheets and coils?
Monel 400 is employed in applications such as ship buildings, heat exchanges, chemical processing, oil refineries, and resistance to seawater, acid, and alcohol in power generation.
Are Monel 400 sheets and coils sea water resistant to sea water?
Yes, Monel grades in seawater provide 400 sheets and first-rate resistance for coil rust, making them ideal for marine components, shipbuilding & offshore equipment.
Can Monel 400 plates be welded and repeatedly welded?
Yes, Monel 400 plates are weldable using standard methods like TIG/MIG. However, according to the need, one can mould it according to your inner custom design, and accurate machining and cooling systems are important during construction.
What standards do Monel follow for 400 plates, sheets and coils?
Monel 400 products meet all the standards of ASTM B127 & UNS N04400 standards, which will definitely ensure reliable performance in industrial and marine applications.
